Device Management

Overview

Manage your organization’s device inventory, configurations, and lifecycle processes through ARROW’s comprehensive device management platform.

ARROW Portal - Devices

Once a device is provisioned, it will show up within the Devices page of the ARROW Portal. The default view places each device in a card-style layout. This can be changed to list view by selecting the List View Icon. The Devices page displays comprehensive information organized from the upper left downwards:

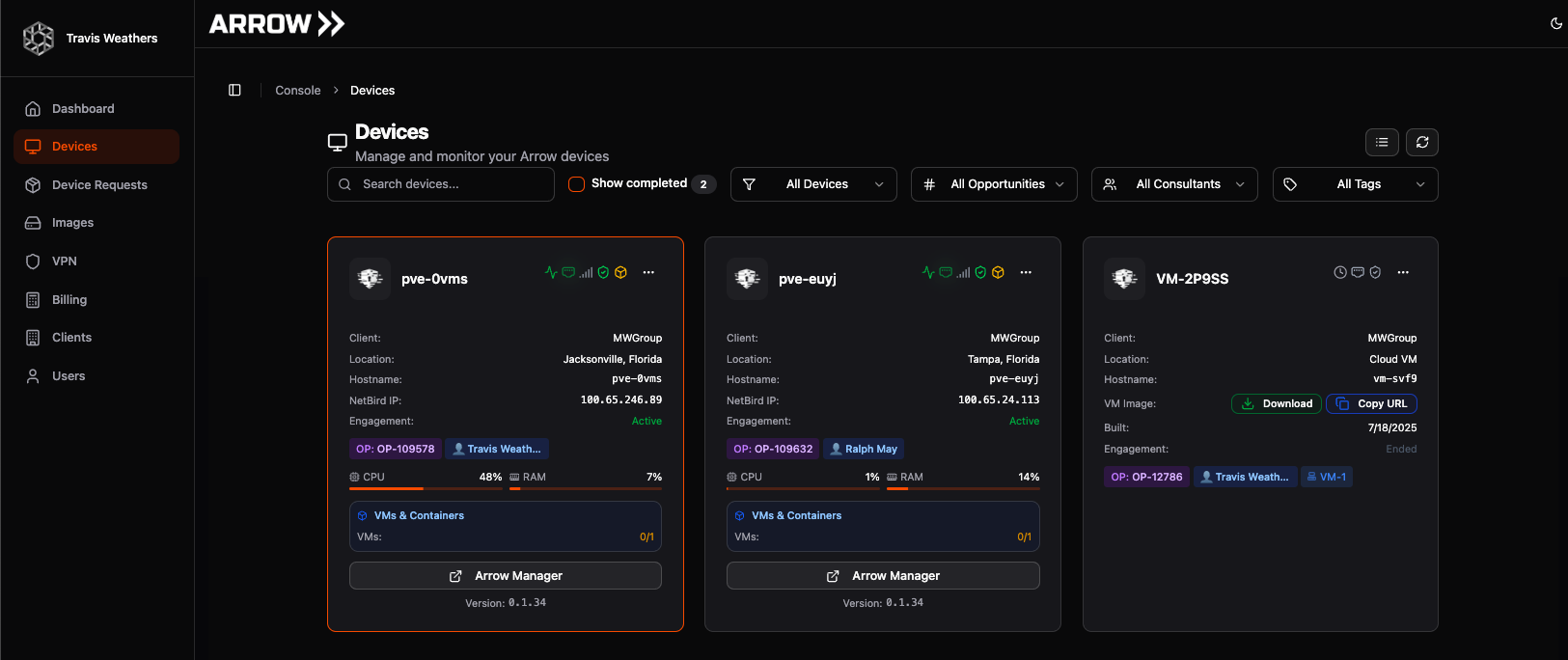

Devices Card View

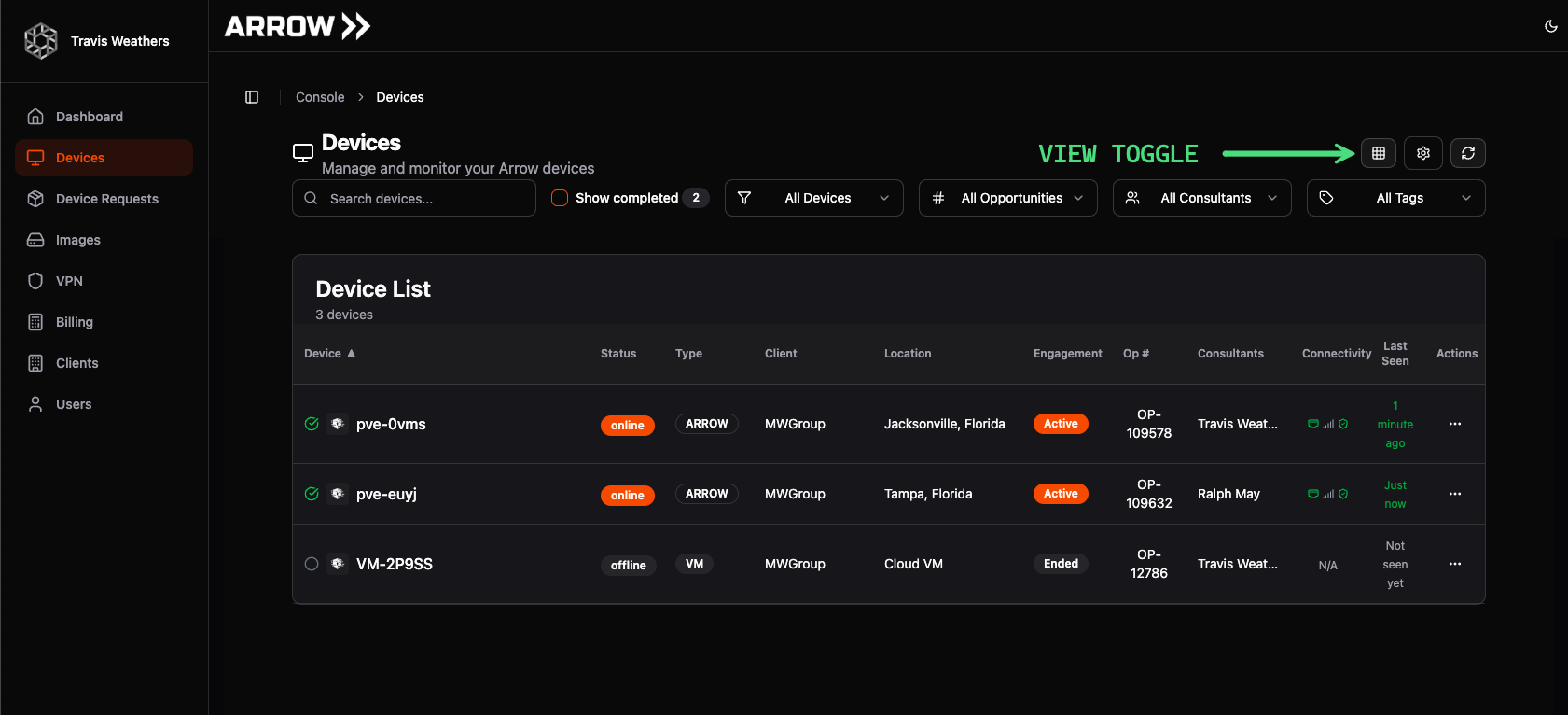

Devices List View

Device Overview Elements

Element	Description
Client Logo	Added for aesthetic recognition during the client onboarding process
Unique Device Name	Randomly generated device/hostname set during the provisioning process

Device Status Icons

Status	Icon	Description
Health Monitor	Heartbeat	Indicates metrics health. Device metrics are pulled every minute - keep this in mind during troubleshooting
Primary Adapter	Ethernet port	Shows if the device is connected via Ethernet (primary connection)
Failover Adapter	Signal strength	Indicates if the device is in failover mode and connected via cellular
VPN Status	Shield check	Shows whether the device has a stable VPN connection
Virtual Machine Status	Cube	Indicates if a virtual machine is deployed and its health status

The ellipsis menu provides access to the following actions:

Action	Description
View Details	Open the device details view to see full metrics, interfaces, and recent activity
Access Arrow Manager	Launch the ARROW Manager UI for live administration on the device
Edit Tags	Add, remove, or rename tags used for search and grouping
Edit Request Details	Update the originating device request (notes, dates, consultants)
Copy Arrow Password	Copy the ARROW Manager/user password to your clipboard
Copy Root Password	Copy the device’s root credential to your clipboard
Request VPN Setup Token	Generate a one-time VPN setup token

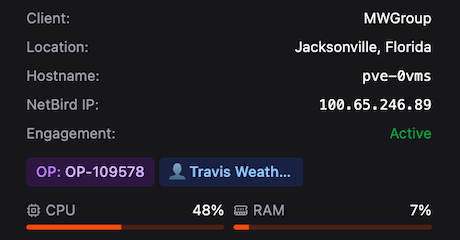

Device & Engagement Information

Field	Description
Client	The corresponding client organization
Location	Location data pulled from various sources including IP geolocation and shipping address
Hostname	Matches the Unique Device Name. Format: PVE (Proxmox Virtual Environment) + four-digit string. Full VPN hostname: `hostname.arrow.local`
NetBird IP	IP address assigned by the NetBird VPN orchestrator
Engagement Status	Status driven by dates defined in the request. View completed devices using Show completed in the Devices page header
OP & Consultants	Optional organizational data such as project numbers and assigned consultants
CPU & RAM	Current load statistics and resource usage for the device

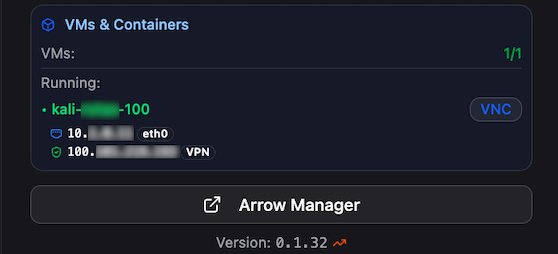

Virtual Machine Field

Field	Description
VMs & Containers	Details for running virtual machines including hostname, internal IP, and VPN IP. Includes direct link to NoVNC HTML5 interface (fast, auto-scalable, with copy/paste support)
ARROW Manager Button	Opens the ARROW Manager application running on the physical device

ARROW Manager - Device Setup

To set up a physical device for testing, click on the ARROW Manager button in the device card. This will launch a new browser tab that connects to the ARROW Manager application running on the device. This dashboard is available via the VPN connection (Ethernet or Cellular) and via the WiFi Hotspot for client configuration. To log in to the dashboard, click the Login to Dashboard button with the following credentials:

Username: [email protected]
Password: ARROW Password supplied in the device card (Action Menu)

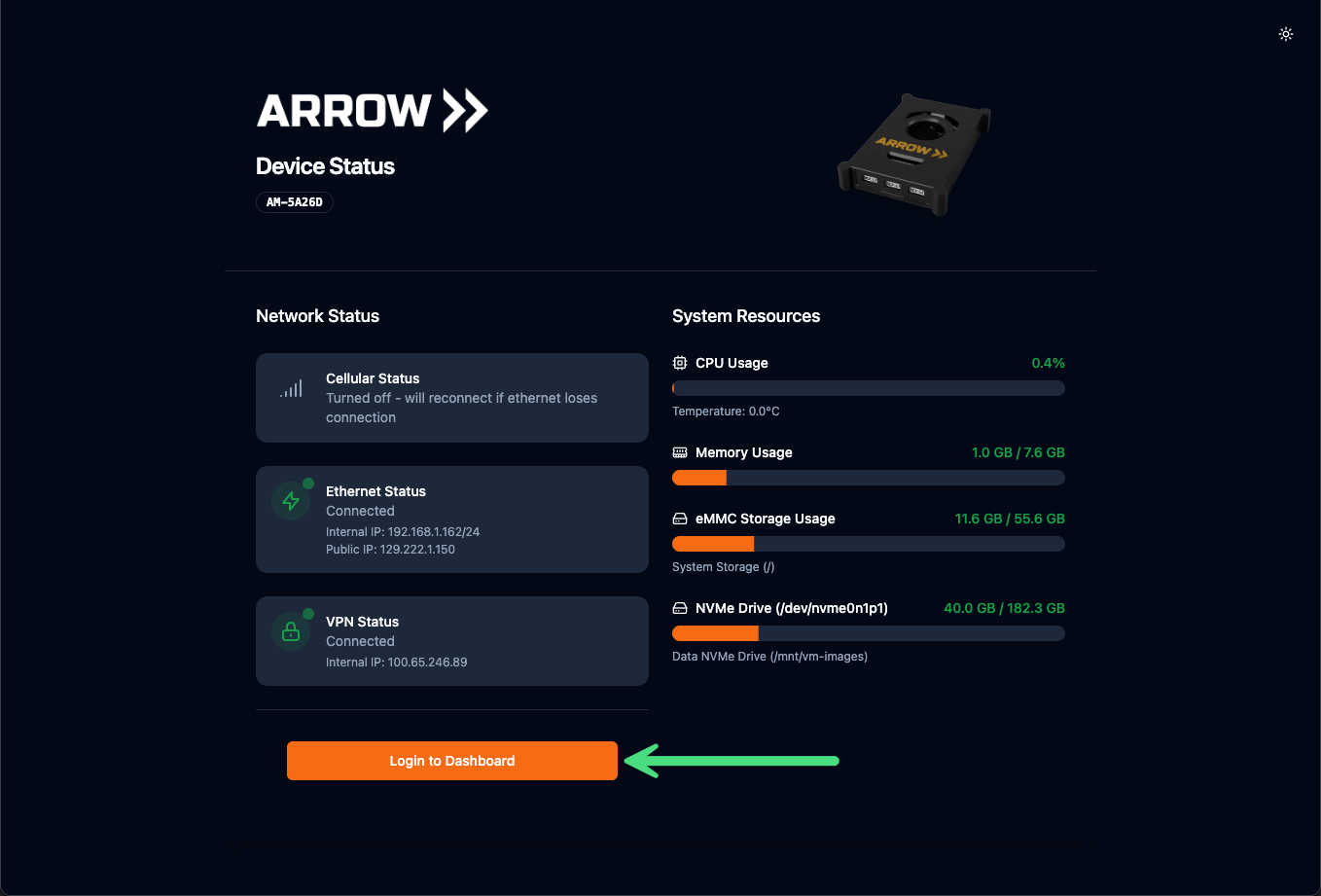

ARROW Manager Dashboard Login Screen

To get started with testing you need to do the following:

Set a LUKS Encryption Key which will encrypt a portion of the NVMe drive
Deploy a Virtual Machine from the AppLibrary
(Optional) Attach any USB devices (e.g., wireless cards) to the virtual machine

Setting a Static IP Address (Physical Device)

We always recommend having your client assign a Static IP address via DHCP issuance within their networking equipment. However, you or your client can manually assign a static IP address by navigating to the Network Settings page, selecting the Static IP radio button, and supplying the desired values. No reboot is required as the arrow-network-manager service will detect the changes and will automatically attempt to bring up the VPN connection on the primary interface (Ethernet). If the Static IP address details are entered incorrectly or there are security controls in place blocking egress or the VPN Orchestrator host, the device will fail back over to cellular or the WiFi Hotspot.

IMPORTANT
Please do not make direct edits to /etc/network/interfaces without first consulting the ARROW support team. All network configurations should be performed exclusively via the Settings tab within the ARROW Manager portal.

The following is a sample output of the /etc/network/interfaces file when the Proxmox device is set to DHCP and Static IP addressing as well as the standard contents of the wwan0 (cellular modem) and wlo1 (wireless hotspot) files. There should never be a use case where the wwan0 and wlo1 files need modification.

Static IP Configuration - /etc/network/interfaces

# <-SNIPPED FOR BREVITY->

auto lo
iface lo inet loopback

auto enp2s0
iface enp2s0 inet manual

iface wlo1 inet manual

iface wlx00c0cab2f4b8 inet manual

iface wwan0 inet manual

auto vmbr0
iface vmbr0 inet static
  address 192.168.1.55/24
  gateway 192.168.1.1
  bridge-ports enp2s0
  bridge-stp off
  bridge-fd 0
  bridge-vlan-aware yes
  bridge-vids 2-4094
#Managed by Arrow Manager

source /etc/network/interfaces.d/*

DHCP Configuration - /etc/network/interfaces

# <-SNIPPED FOR BREVITY->

auto lo
iface lo inet loopback

auto enp2s0
iface enp2s0 inet manual

iface wlo1 inet manual

iface wlx00c0cab2f4b8 inet manual

iface wwan0 inet manual

auto vmbr0
iface vmbr0 inet dhcp
  bridge-ports enp2s0
  bridge-stp off
  bridge-fd 0
  bridge-vlan-aware yes
  bridge-vids 2-4094
#Managed by Arrow Manager

source /etc/network/interfaces.d/*

Cellular Configuration - /etc/network/interfaces.d/wwan0

# <-SNIPPED FOR BREVITY->

# WWAN0 LTE interface configuration
allow-hotplug wwan0
iface wwan0 inet manual
    dns-nameservers 8.8.8.8 8.8.4.4 1.1.1.1

    # Disable IPv6 on this interface
    post-up echo 1 > /proc/sys/net/ipv6/conf/wwan0/disable_ipv6

Hotspot Configuration - /etc/network/interfaces.d/wlo1

# <-SNIPPED FOR BREVITY->

auto wlo1
iface wlo1 inet static
    address 10.123.45.1
    netmask 255.255.255.0

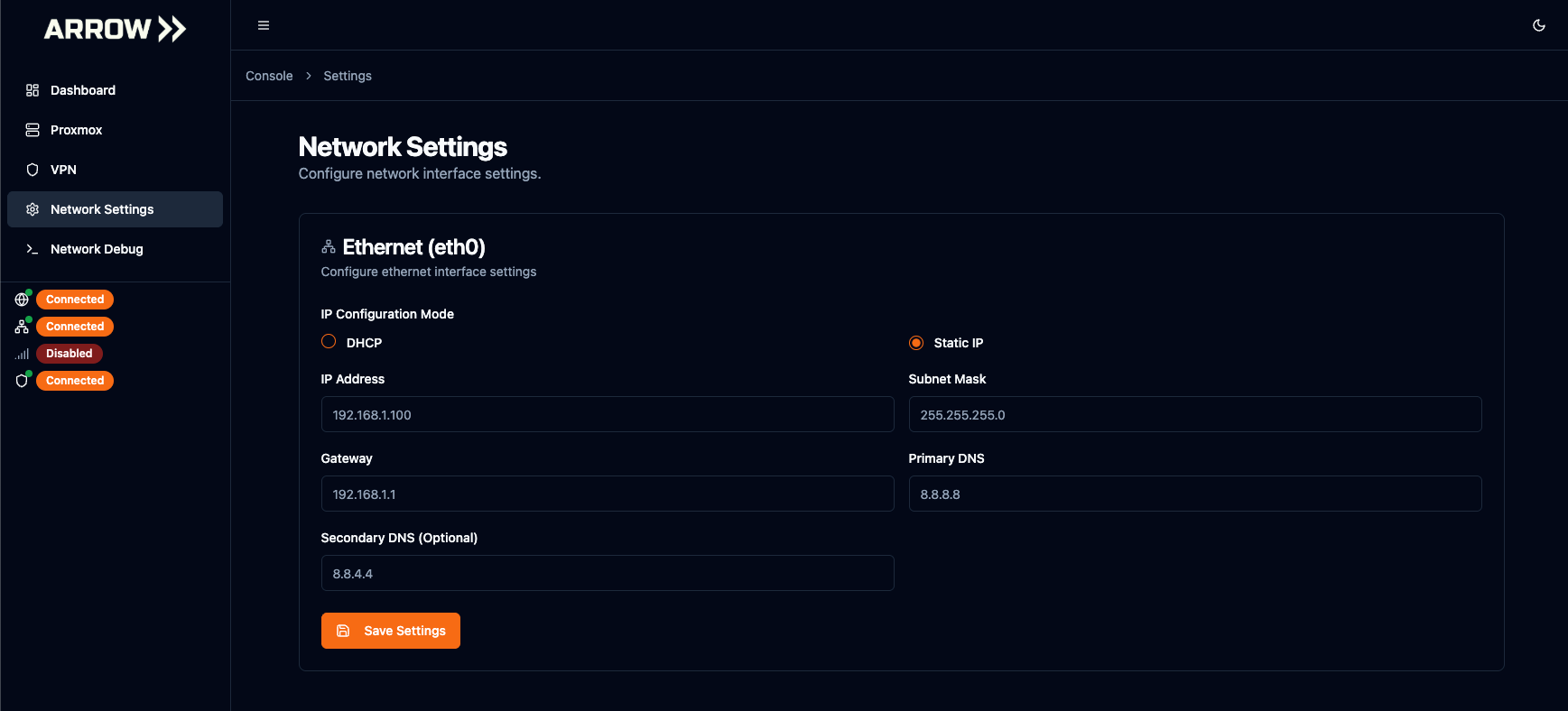

Static IP Assignment - Physical Device

Setting up LUKS Encryption

Navigate to the Proxmox tab inside the ARROW Manager application. You will see a message stating “Encrypted Storage Setup Required”. Click on the Setup Encryption button, supply an encryption key that aligns with your organization’s policy, and click the Create Encrypted Storage button. It will take approximately 15-30 seconds for the encryption process to complete.

Important
Ensure that you store the LUKS Encryption Key in a secure method that is approved by your organization. Should the device lose power or require a reboot, you will need to enter the encryption key to restart the virtual machine. VTEM Labs does not store the key and cannot assist in data/key recovery.

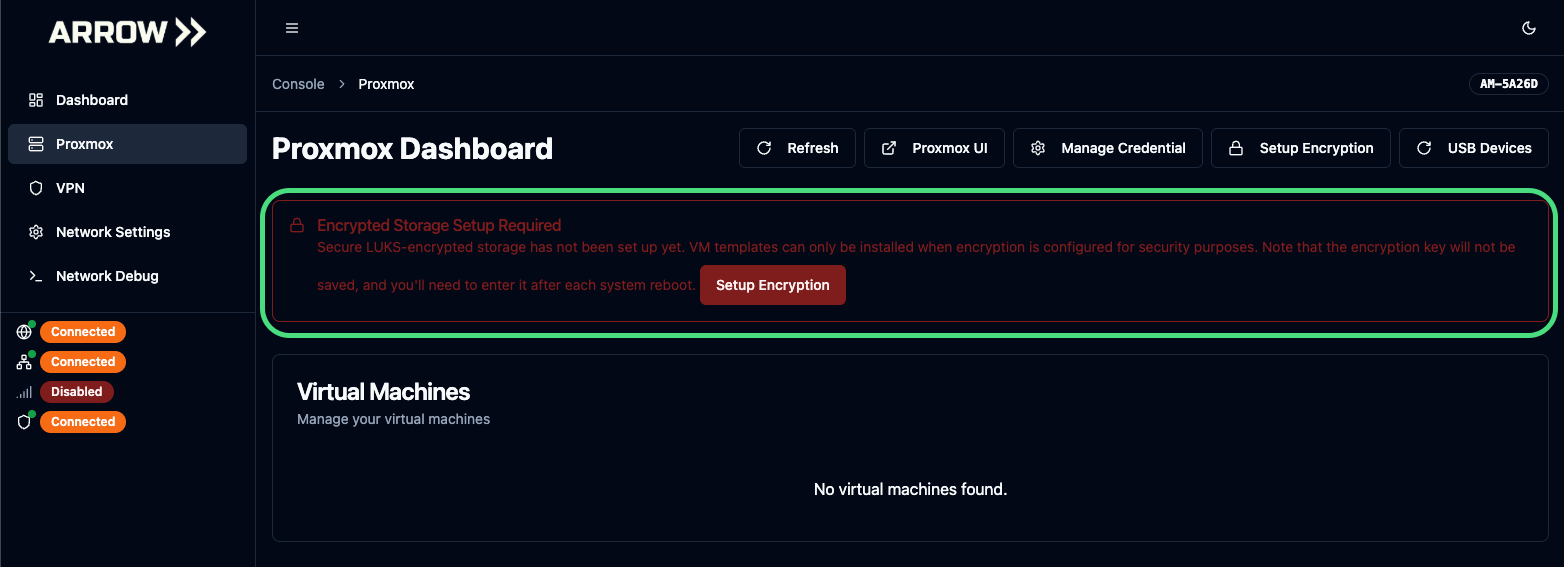

LUKS Setup Warning

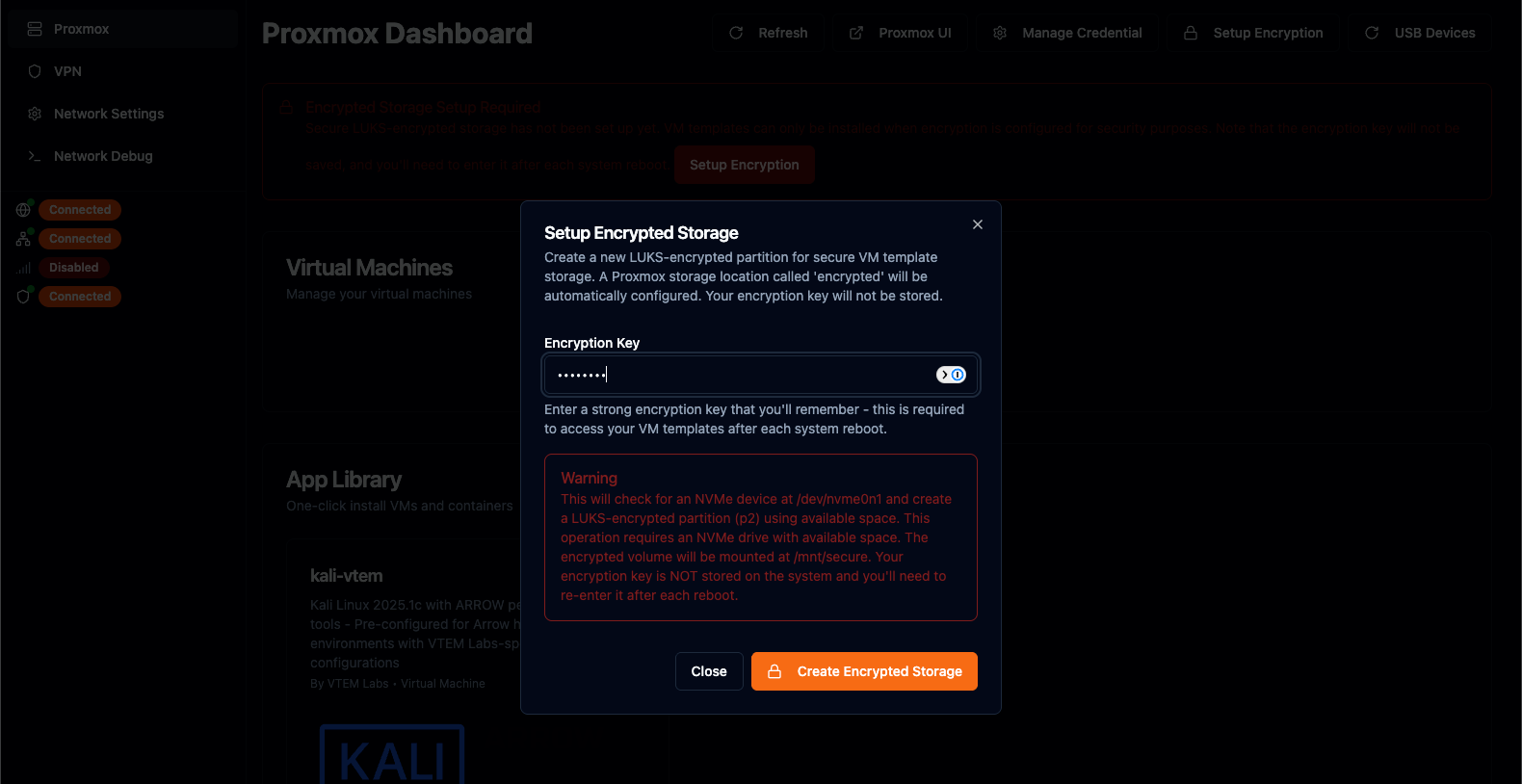

LUKS Key Setup

Once the encrypted NVMe partition has been created, you can now deploy a virtual machine.

Deploying a Virtual Machine

To deploy a virtual machine, select an image from the App Library and click the Deploy button. This will launch the Configure VM Deployment window. This process builds out the cloud-init configuration for when the Proxmox template file is deployed on the LUKS-encrypted partition.

Required Configuration Values:

Field	Description
Root Password	Password for the root user on the virtual machine
ARROW User Password	Password for the arrow user account on the virtual machine
VPN Setup Key	Key required to add the virtual machine to your VPN. Generate this from the Device Card on the ARROW Portal inside the (Action Menu)

Optional Configuration Values:

Field	Description
SSH Public Key	Enables SSH access to the ARROW and ROOT accounts without using defined passwords
Netbird Device Name	Custom device name that can be set in the VPN Setup menu
MAC Address	Custom MAC address for the virtual machine. Useful for providing clients with device MAC addresses in advance for NAC/IP address provisioning prior to device arrival
Static IP Configuration	Configure the virtual machine to use a static IP address

Apply the desired settings and click the Create VM button. It will take approximately 50 seconds to fully deploy the virtual machine. If any USB devices are connected to the device, you will see the details of the device(s) and an Attach button. Attaching a device will induce a restart. The virtual machine will start sending statistics to the metrics server. However, the ARROW Portal only pulls this information every minute.

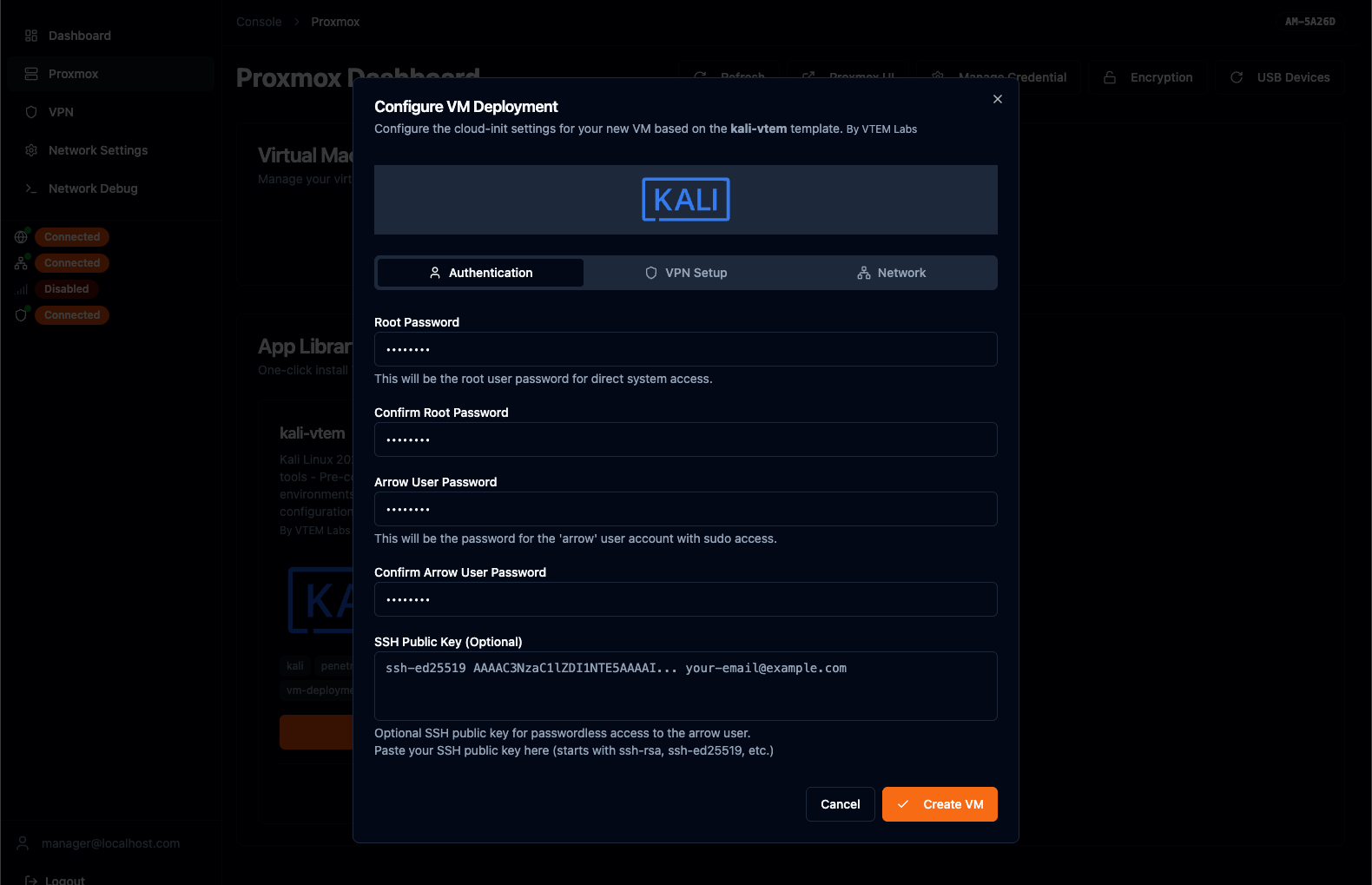

Configure VM Deployment Window

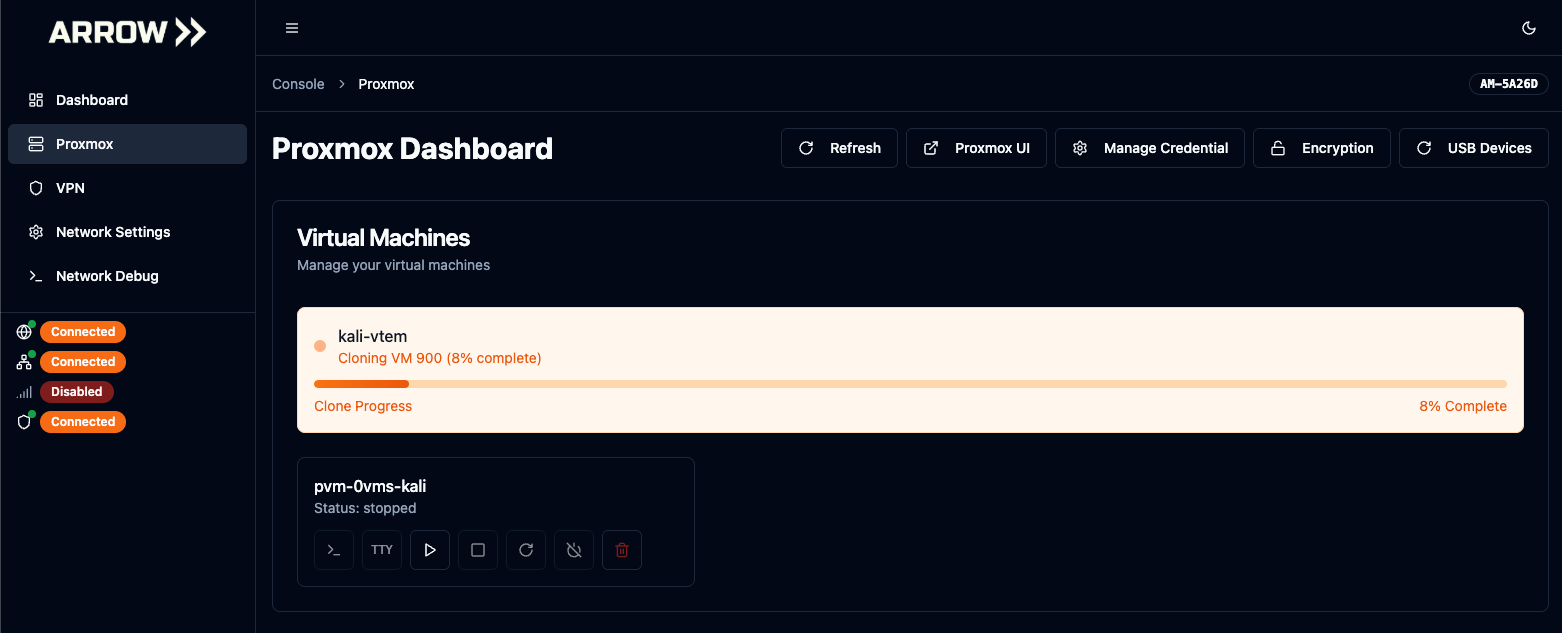

Virtual Machine Deployment Status Indicator

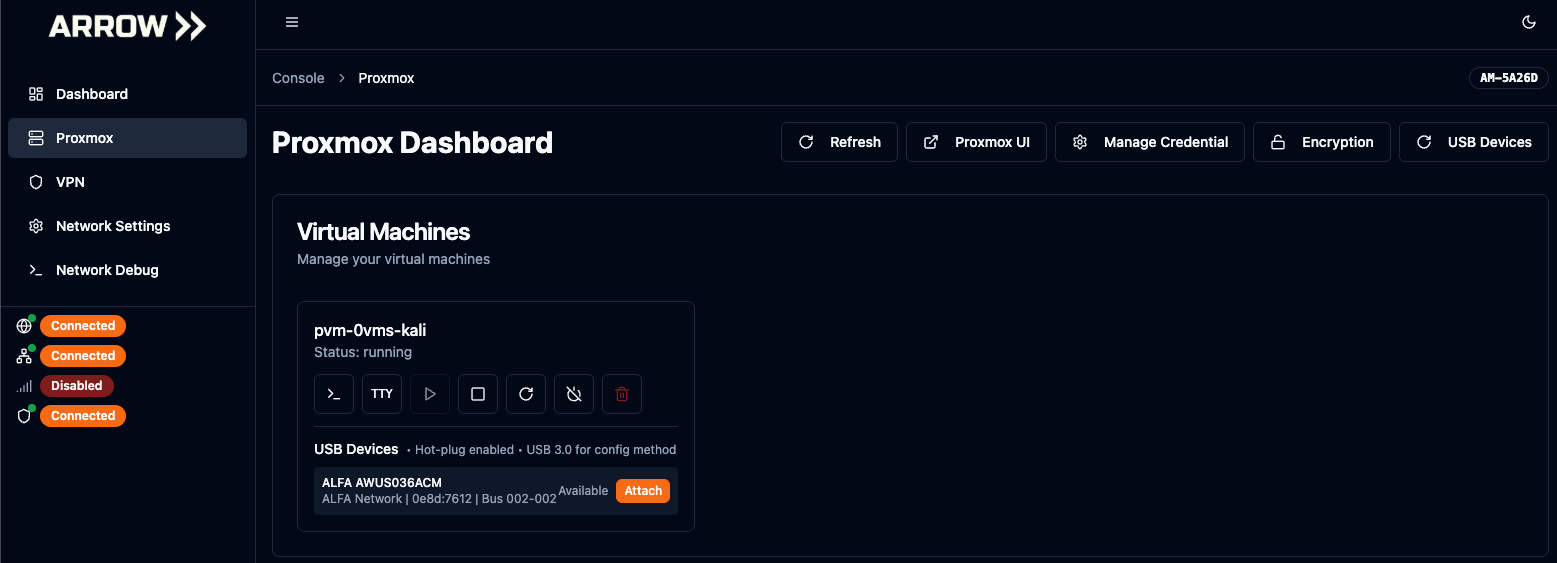

Deployed Virtual Machine w/ Wireless Card

To access the virtual machine, follow the documentation provided in the Proxmox Virtual Machines section.
